Using Color to See More - The PanCam Filter Wheels
The Caves of Mars | Education Resources | MER Color Index | About the PanCam
The Panoramic Camera carries 14 different types of filters, allowing not only full-color images but also spectral analysis of minerals and the atmosphere. Below are seven shots from each camera of the Calibartion Sundial, taken through all but the Neutral Density Solar Filters. The central color swatch and arrows show which part of the spectrum that particular filter is sensitive to.

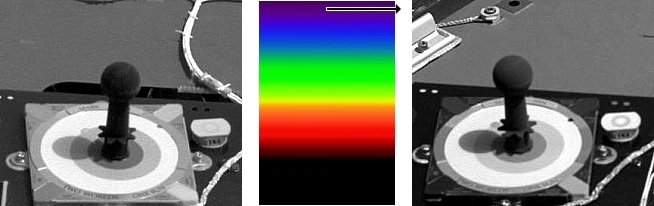

Filter 1
Left Camera, Filter 1 - Empty - Right Camera, Filter 1 - 430nm

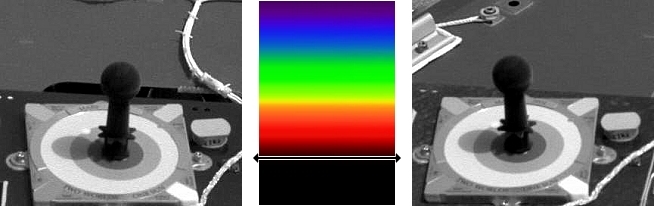

Filter 1
Left Camera, Filter 2 - 750nm - Right Camera, Filter 2 - 750nm

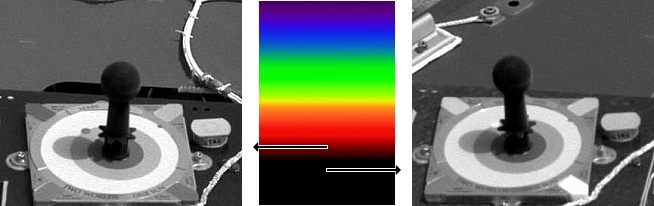

Filter 1
Left Camera, Filter 3 - 670nm - Right Camera, Filter 3 - 800nm

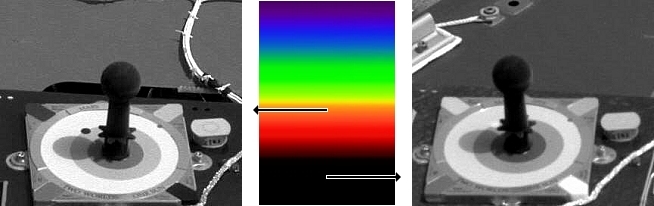

Filter 4
Left Camera, Filter 4 - 600nm - Right Camera, Filter 4 - 860nm
Filter 5
Left Camera, Filter 5 - 530nm - Right Camera, Filter 5 - 900nm

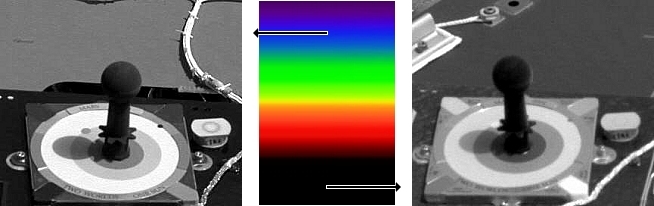

Filter 6
Left Camera, Filter 6 - 480nm - Right Camera, Filter 6 - 930nm

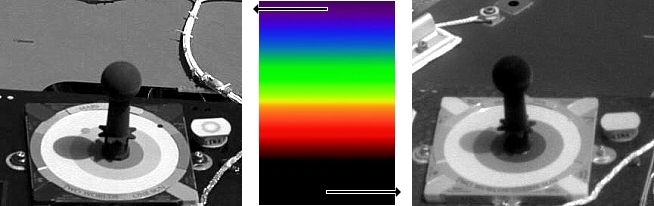

Filter 7
Left Camera, Filter 7 - 430nm - Right Camera, Filter 7 - 980nm
All Images Courtesy NASA/JPL Mars Exploration Rover Mission
